User's manual for LED clock timer display of Rousis Systems LTD.

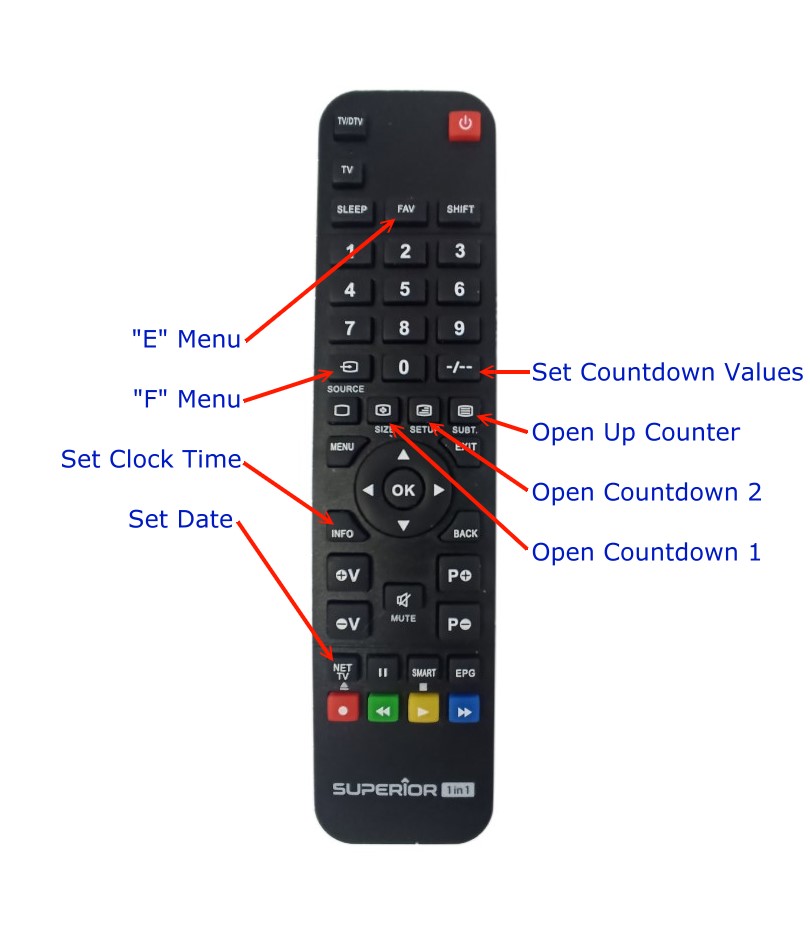

The sign is basically operated with the infrared remote control, with a maximum range of 20 meters, with visual contact and focus on the panel.
User's Menu (F' Menu) - Button [SOURCE]
| F1 | Select info to display (time-date-temp). * | Default: 1 |
| F2 | Select Tempo Display | Default: 9 |
| b | Set LED Brightness 0-16 (0 = use auto adjust with sensor) | Default:16 |
| L | Sets the brightness level for open-close the out relay (with 2units hysterisys) | Default: 16 |
| F5 | High resolution temperature | Default: 0 |
| F6 | Countdown alarms number (how many) | Default: 0 |
| F7 | Alarm Lenght (in seconds) | Default: 0 |
| F8 | Clock dots blinking enable | Default: 1 |
| F9 | Clock Alarms Enable |
*Select info to display
|
Code
|
Clock
|
Date | Temperature |
|
1
|
ON
|
OFF
|
OFF
|
|
2
|
OFF
|
ON
|
OFF
|
|
3
|
ON
|
ON
|
OFF
|
|
4
|
OFF
|
OFF
|
ON
|
|
5
|
ON
|
OFF
|
ON
|
|
6
|
OFF
|
ON
|
ON
|
|
7
|
ON
|
ON
|
ON
|
Technician's Menu (E' Menu) - Button [FAV]
| E0 | Clock digits | Default: 4 |
| E1 | Invert display | Default: 0 |
| E2 | TLC LED drivers | Default: 0 |
| E3 | Separate temperature | Default: 0 |
| E4 | Centimeter of a second | Default: 0 |
| E5 | External control* | Default: 0 |
| E6 | GPS Synchronize Enable | Default: 0 |
| E7 | Buzzer On | Default: 1 |
| E8 | 2 Digits timer modes | Default: 0 |
| E9 | Time Zone Set | Default: 0 |
*External control code:
- Keypad Control Off = 0
- Buttons input (Start,Stop, Reset) Up Counter = 1
- Buttons input (Start,Stop, Reset) Counter Down 1 = 2
- Buttons input (Start,Stop, Reset) Counter Down 2 = 3
- Monitor mode (displays only serial data from Pro Timing software)
* 2 Digits timer modes
- Normal 2 digits timer with hours-minutes-seconds = 0
- 0-59 timer = 1
- 0-99 timer = 2
- 59-0 timer (Counter down non finish) = 3
- 99-0 timer (Counter down non finish) = 4
Set normal Clock Button - [INFO]
Change Hours:Minutes:Seconds and press [OK] for save and [left][right] for move cursor.
Set Date Button - [NET]
Change Date:Month:Year and press [OK] for save and [left][right] for move cursor.
Set Countdown start times - Button [-/--]
Use [up][down] for next or previews memory and [left][right] for move cursor.
Start Countdown timer 1 - Button []
Use [ok] for start and stop and [exit] for cancel.
Start Countdown timer 2 - Button []
Use [ok] for start and stop and [exit] for cancel.
Start Up Counter timer - Button []
Use [ok] for start and stop and [exit] for cancel.
Change Live the timer - Button [Play]
Use [ok] for start and stop and [exit] for cancel.
Set Alarm Times Button [EPG]
When a number of countdown is enabled from the menu F7 in the User's Menu (F' Menu) from this menu you can set all the alarm times.
Use [up][down] for next or previews memory and [left][right] for move cursor, [OK] for save or [EXIT] for cancel.
Set Clock Alarms Button [>>]
When "Clock Alarms Enable" is set to '1' from the menu F9 in the User's Menu (F' Menu) from this menu you can set all the alarm times.
Use [up][down] for next or previews memory and [left][right] for move cursor, [OK] for save or [EXIT] for cancel.
Show Brightness - Button [SHIFT + SOURCE]
Shows the current brightness for 3 seconds and returns to the main function.
Input instructions cable connection
(For models with input cable for external control of the timer.)
| white | Reset |
| Yewllow | Stop |
| Green | Start |
| Brown | GND (-) |
